Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length
تمام دسته ها

کابل فیبر نوری زره ​​پوش در فضای باز

فیبر زره دار در فضای باز

کابل فیبر نوری تاکتیکی

کابل کامپوزیت فوتوالکتریک

کابل های فیبر نوری بیرونی

کابل فیبر نوری داخلی

پچ کورد فیبر نوری

فیبر نوری Pigtail

لوازم جانبی فیبر نوری

جعبه ترمینال فیبر نوری

پچ پنل فیبر نوری

شکاف فیبر نوری

ماژول فیبر نوری
با ما تماس بگیرید
sales@hxfiber.com
حالا تماس بگیرید
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length
  • نام
  • نام
  • نام
  • نام
  • نام
  • نام

Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length

نام تجاری: HXCOWO
شماره مدل: HX-SW6
مقدار تولیدی: 1000
اطلاعات دقیق
توضیحات محصول
اطلاعات دقیق
محل منبع:
گوانگدونگ ، چین
گواهی:
RoHS
هسته:
2-288 هسته
نوع فیبر:
G652D/G657A1/G657A2
قطر:
10.6-15 میلی متر
وزن:
124-207 کیلوگرم در کیلومتر
نیروی کششی:
1000/3000 نیوتن
نیروی اسکواش:
1000/3000 نیوتن/10 میلی متر
شعاع خمش:
10D/20D میلی متر
ماده لوله سست:
پلی مدول بالا
مواد غلاف:
کامپوزیت آلومینیوم پلاستیک
هسته تقویت کننده:
سیم فولادی تک فلزی
ترکیب ضد آب:
خمیر روغن مخصوص
طول تحویل:
طول سفارشی
مقاومت دما:
دمای بالا و پایین
روشهای تخمگذار:
خط لوله، سربار، دفن مستقیم
خروجی ماهانه:
1500 کیلومتر
برجسته کردن:

2-288 Cores GYXTW Fiber Optic Cable,G652D/G657A1/G657A2 Fiber Type Outdoor Armored Fiber Optic Cable,Custom Length Armoured Fiber Optic Cable

,

G652D/G657A1/G657A2 Fiber Type Outdoor Armored Fiber Optic Cable

,

Custom Length Armoured Fiber Optic Cable

توضیحات محصول
HXCOWO Free Sample Hot Sale 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor GYXTW G657A Armoured Fiber Optic Cable
TECHNICAL PARAMETERS
Fiber Cores Number Diameter (mm) Weight (kg/km)
2-12 10.6 124
14-24 12 147
26-36 12 150
38-48 15 207
Allowable Tensile Force Long Term/Short Term (N) Allow Squash Force Long Term/Short Term (N/10mm) Bending Radius Static/Dynamic (mm)
1000/3000 1000/3000 10D/20D
PRODUCT FEATURES
  • Excellent mechanical properties and temperature characteristics
  • Loose tube material with good hydrolysis resistance and high strength
  • Tube filled with special oil paste for critical fiber protection
  • Good compression resistance and softness
  • Double sided coated steel strip (PSP) improves moisture resistance
  • Two parallel steel wires ensure tensile strength
  • Small diameter, light weight, easy to lay
  • Long delivery length

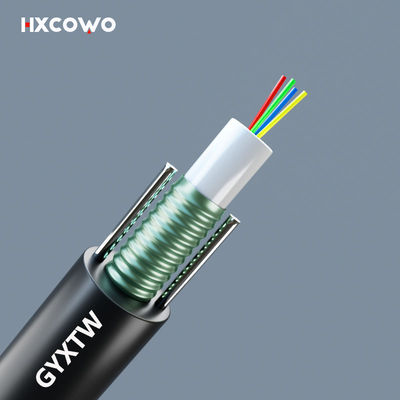

OUTDOOR BUNDLED TUBE FIBER CABLE GYXTW
Grade A fiber core/High-quality material selection/Quality assurance
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 0 Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 1

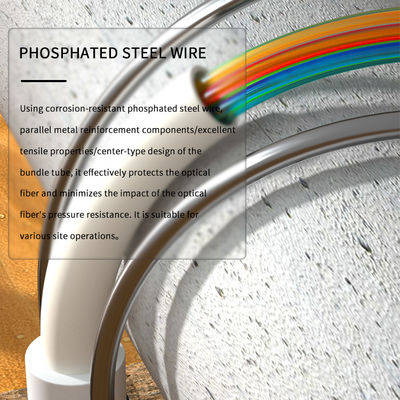

PHOSPHATED STEEL WIRE
Using corrosion-resistant phosphated steel wire, parallel metal reinforcement components with excellent tensile properties. Center-type design of the bundle tube effectively protects the optical fiber and minimizes pressure impact. Suitable for various site operations.
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 2

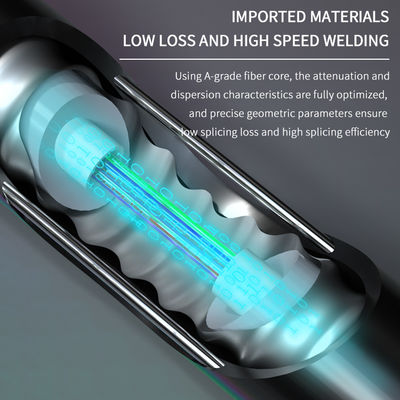

IMPORTED MATERIALS - LOW LOSS AND HIGH SPEED WELDING
Using A-grade fiber core with optimized attenuation and dispersion characteristics. Precise geometric parameters ensure low splicing loss and high splicing efficiency.
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 3

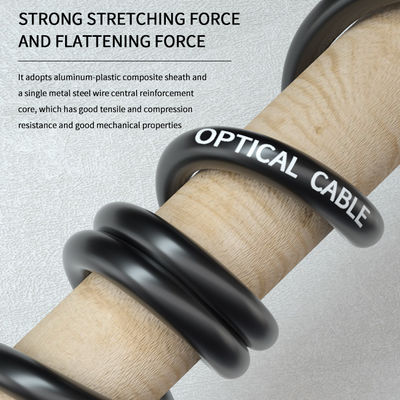

STRONG STRETCHING FORCE AND FLATTENING FORCE
Features aluminum-plastic composite sheath and single metal steel wire central reinforcement core for excellent tensile and compression resistance with good mechanical properties.
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 4
The thickened sheath is made of high-quality materials with excellent high/low temperature resistance and tensile properties, formed in one piece for greater durability. Various materials available including LSZH/PC/PE/PVC.
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 5

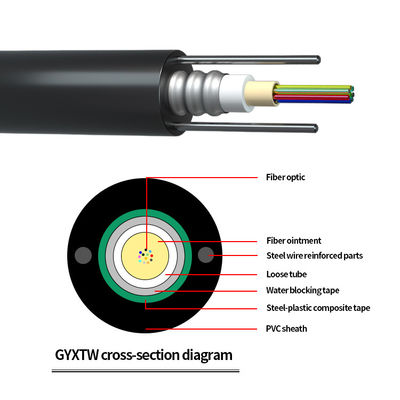

GYXTW CABLE STRUCTURE
Single-mode or multi-mode optical fiber inserted into high-modulus poly loose tube casing filled with waterproof compound. Loose tubes twisted around central strengthening core into compact circular cable with water-blocking fillers. Features small diameter and light weight, suitable for pipeline, overhead and direct buried laying. Excellent mechanical properties and temperature characteristics, compatible with other telecommunications-grade optical fibers.
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 6 Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 7
PRODUCT DESIGN
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 8 Accept customization - Put Your Good Idea into Reality Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 9
COMPANY PROFILE
Outdoor Armored GYXTW Fiber Optic Cable 2-288 Cores G652D/G657A1/G657A2 Fiber Type Custom Length 10
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. Founded in 2010 with brand HXCOWO, providing optical fiber cabling solutions for data centers, enterprise networks, and operators. With over 10 years' development, $5 million registered capital, 6,000 sqm workplace, 7 production assemblies, and 70 skilled workers. Monthly output reaches 1500km fiber optic cables. ISO9001:2015 certified with products exported worldwide including Europe, America, Asia, South America, and Africa.
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing etc).
5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.
6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.
7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.
8. What about Payment?
L/C, T/T, Western Union and Paypal are acceptable.
9. What mode of transportation do you support?
Ocean transportation, air transport, Express, etc.
